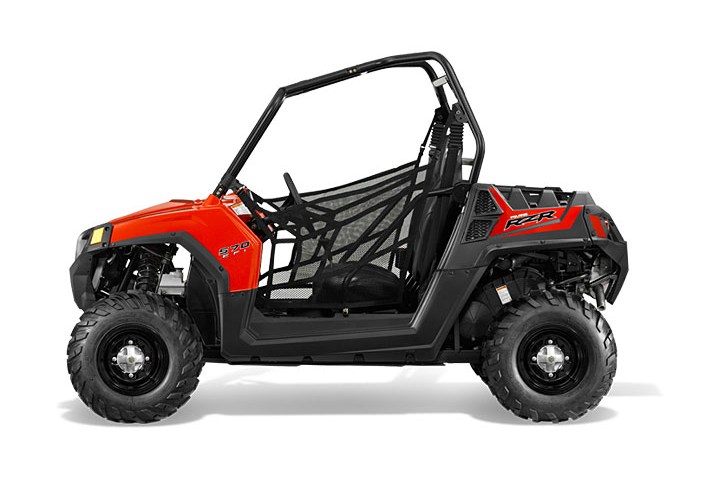

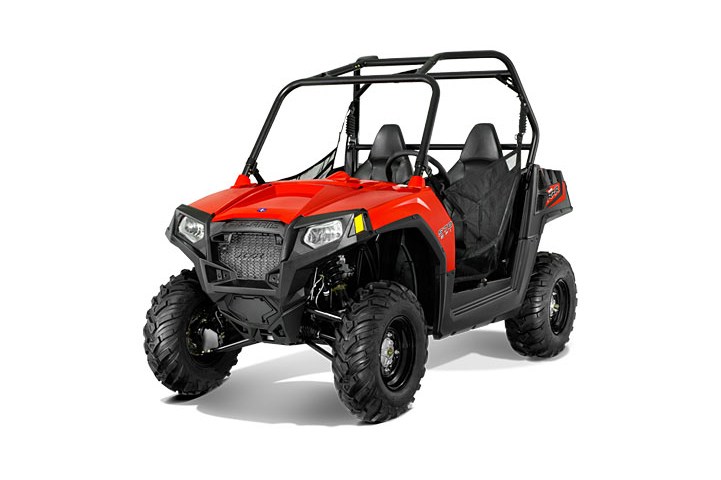

2014 Polaris RZR® 570

2014 Polaris RZR® 570
Indy Red
MSRP: $10,299.00
Manufacturer: Polaris
Condition: New

Description

Polaris ProStar 570 Engine

Purpose-built and powerful ProStar 570 Engine features 4 valves and dual overhead cam. Born from the ProStar 900 Engine, it features a removable cargo bed panel and a wet sump for easy serviceability.

Lightweight Transmission

Specifically built to optimize power of the Polaris ProStar™ 570 engine, its high-torque capacity delivers superior performance and handling. This means more power to the ground, less driveline noise and lighter weight. The innovative lightweight design features a helical cut final drive with optimized gear geometry to maximize efficiency.

QUICK ACCELERATION

0 to 35 mph in 4.0 seconds made possible with its light vehicle weight, and high-torque Polaris ProStar™ 570 engine. That's impressive acceleration taking you from corner to corner on the trail.

SUPERIOR FRONT TRAVEL AND SUSPENSION FOR THE TRAIL

With 9" of suspension travel in the front and 9.5" in the rear, and premium Walker Evans shocks, this machine is delivered ready to hit the trails.

UNMATCHED REAR TRAVEL AND SUSPENSION FOR THE TRAIL

Ultra smooth riding independent rear suspension (IRS) with specifically designed geometry that provides 9.5" travel in the rear, with pre-load adjustable ZF Sachs Shocks, this machine is delivered ready to hit the trails.

LONG WHEELBASE AND INDEPENDENT REAR SUSPENSION FOR A SMOOTH RIDE

RZR® features a 77" long wheelbase paired with front and rear Dual A-Arm suspension for the ultimate in trail performance. The ride is enhanced even more with legendary Polaris independent rear suspension (IRS), taking the bite out of those bumps and rock

PRECISE, FLAT CORNERING

Exclusive front and rear anti-sway bars keep the chassis flat while cornering, letting the suspension do it's job to keep the ride smooth through rocks, ruts and stumps.

ONLY TRAIL CAPABLE* SIDE x SIDE

With a 50” width, just 2” wider than many ATVs, the Polaris RZR goes where other Side x Sides can’t. It's the only trail-capable* Side x Side on the market.

LOWEST CENTER OF GRAVITY

Only RZR features the Polaris-exclusive Optimized Mass Design. The engine and other components are strategically placed to create the absolute lowest center of gravity, for the ultimate in razor-sharp performance.

ON-DEMAND TRUE ALL-WHEEL DRIVE (AWD)

True AWD gives you the ultimate grip to put that 50" width to work into and out-of corners. It’s the easiest to use and fastest responding on-demand system, automatically engaging all four wheels when you need more forward traction and reverting back to 2.

Specifications

Engine

Engine Type
4-Stroke DOHC Single Cylinder
Displacement
567cc
Fuel System
Electronic Fuel Injection
Cooling
Liquid


Drivetrain

Transmission/Final Drive
Automatic PVT P/R/N/L/H
Drive System
On-Demand True AWD/2WD
Engine Braking System
Not Equipped


Suspension

Front Suspension
Dual A-Arm with Anti-Sway Bar 9 in. (22.9 cm) Travel
Rear Suspension
Dual A-Arm, Anti-Sway Bar 9.5 in. (24 cm) Travel


Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
Parking Brake
Park in Transmission


Tires and Wheels

Front Tires
25 x 8-12; Ancla
Rear Tires
25 x 10-12; Ancla
Wheels
Stamped Steel


Dimensions and Capacities

Wheelbase
77 in. (196 cm)
Dry Weight
996 lb. (452 kg)
Overall Vehicle Size (L x W x H)
107.5 x 50 x 69 in. (273 x 127 x 175.2 cm)
Ground Clearance
10.5 in. (26.7 cm)
Seat Height
N.A.
Fuel Capacity
7.25 gal (27.4 L)
Bed Box Dimensions (L x W x H)
20 x 40 x 9 in. (51 x 102 x 23 cm)
Front/Rear Rack or Box Capacity
N.A./300 lb (136.1 kg)
Payload Capacity
740 lb (335.6 kg)
Hitch Towing Rating
1,500 lb (680.4 kg)
Unbraked Trailer Towing Capacity
N.A.
Hitch/Type
Standard/1.25 Receiver


Key Items

Cargo System
Lock & Ride
Instrumentation
Digital Gauge, Speedometer, Odometer, Tripmeter, Tachometer, Coolant Temperature, Volt Meter, Hour Meter, Service Indicator, Clock, Gear Indicator, Fuel Gauge, Hi-Temp Light, Seatbelt Reminder Light, DC Outlet


All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
